ST/UPC To FC/UPC DX OM3 Aqua Fiber Patch Cable 0.9mm for Data Center

ST/UPC To FC/UPC DX OM3 Aqua Fiber Patch Cable 0.9mm for Data Center

Product Details:

Place of Origin: Guangdong, China
Brand Name: ADTEK/OEM
Certification: ROHS UL
Model Number: SC/UPC to SC/UPC DX OM3 aqua patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: $0.90 - $3.50/ Piece
Packaging Details: Per Wholesale SC/PC to SC/PC G567A DX Fiber Optical Patch Cord Price will have Individual Plastic Poly Bag,then case in export carton
Delivery Time: 3-14days
Payment Terms: T/T
Supply Ability: 200000 Piece/Pieces per Week Wholesale
Get Best Price Contact Now

Detail Information

Mode Type: 62.5/125um,50/125um.9/125um(G652B,G652D,G657A),OM3 O Insertion Loss: PC/UPC/APC< 0.2dB
Name: Fiber Optic Patch Cord Diameter: 0.9mm , 2.0mm , 3.0mm , Flat
Return Loss: PC >45dB UPC >55dB APC >60dB Material: PVC/LSZH
High Light:

0.9mm Aqua Fiber Patch Cable

,

OM3 Aqua Fiber Patch Cable

,

0.9mm OM3 Fiber Patch Cable

Product Description

ST/UPC To FC/UPC DX OM3 Aqua Fiber Patch Cable 0.9mm for Data Center

ST/UPC to FC/UPC DX OM3 aqua Fiber Optical Patch Cord data center cable structure



A patch cord is a fiber optic cable used to attach one device to another for signal routing.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed. LC stands for Lucent Connector. It is a small form-factor fiber optic connector,half the size of the SC.

Item SM MM
Polishing Type PC UPC APC PC
Insertion Loss ≤0.2dB (Typical ≤0.1dB ≤0.3dB/0.5dB(MTRJ)
Custom
Return Loss ≤-45dB ≤-55dB ≤-65dB /
Custom
Durability(500 Mating) 0.2 dB Max. Increase
Operating Temperature -20°C~+75°C
Storage Temperature -40°C~+75°C
Remark: Ferrule Concentricity<1μm
  Ferrule inner diameter tolerance+1/ 0μm
  Ferrule outer diameter tolerance±0.5μm
  Insertion loss<0.1dB random mating

Feature
-Low insertion loss, high return loss;
-Excellent mechanical endurance;
-High credibility and stability;
-Good in repeatability and exchangeability.
Application
-Testing equipment;
-FTTX+LAN;
-Optical fiber CATV;
-Optical communication system;
-Telecommunication;
-High bit rate data transmission.

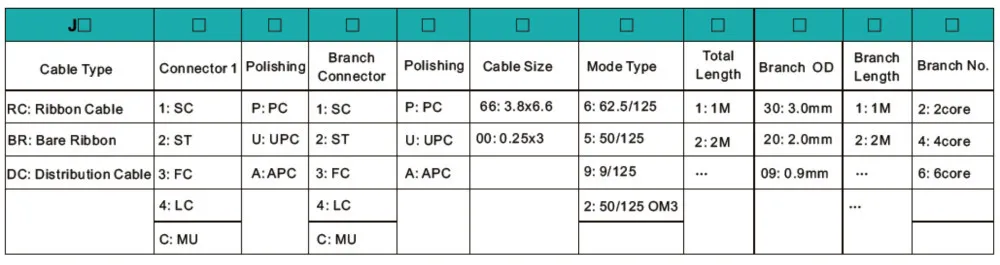

Order information
the best price ST/UPC to FC/UPC DX OM3 aqua Fiber Optical Patch Cord data center cable structure
ST/UPC To FC/UPC DX OM3 Aqua Fiber Patch Cable 0.9mm for Data Center 1
ST/UPC To FC/UPC DX OM3 Aqua Fiber Patch Cable 0.9mm for Data Center 2
Packaging & Shipping

the best price ST/UPC to FC/UPC DX OM3 aqua Fiber Optical Patch Cord data center cable structure







Our Services

 Why you choose ADTEK be one of your partner?







1. Professional manufacturer, 100% tested, free samples are available.
2. OEM service with 13-year experiences, manufacture as per your request.
3. Customers solutions in days, not weeks.
4. Can provide your specific inquiry within 24 hours.
5. Save much costs, bring more benifits for customer to expand business.





Advantage:
1. UL certificate makes the quality leve be the best
2. Warranty is lifetime
3. 100% pass testing to assure a satisfactory performance
4. No any defectives or scratches on the ferrule surface
5. If there is any quality problem, we will make replacement immediately by free





Company Information

the best price ST/UPC to FC/UPC DX OM3 aqua Fiber Optical Patch Cord data center cable structure

Shenzhen ADTEK Technology Co., Ltd. was established in 2007, engaging in providing complete and high-performance fiber optic products and premise distribution solutions for customers worldwide. During these years, we have been continually growing and expanding our product line to keep up with the pace of industry trends.



Form ADTEK you can get the right solutions to fiber optic and premise infrastructures. Our products include fiber optic patch cords, connectors and adapters, patch panels, Cat5e & Cat6 LAN cables, patch cords, patch panels and keystone jack products.



Our knowledgeable sales, technical supporters and engineering staff are dedicated to understanding our customers' requirements and designing products & solutions that meet their needs. In addition, OEM services are well provided for our clients. We help you stay competitive by constant innovation services.



Our Team

the best price ST/UPC to FC/UPC DX OM3 aqua Fiber Optical Patch Cord data center cable structure
